TE Connectivity TES Serisi

■ Fast Ethernet Switch
■ Compact housing
■ Dimensions (W x H x D): 30 x 95 x 140 mm
■ IP30 protection
■ Relay output
■ Store-and-Forward Switching Architecture
■ RJ-45 port support MDI/ MDI-X auto-crossover
■ Broadcast storm protection
■ Embedded switch controller supports autonegotiation
■ Redundant wide range power input +12 – 48 V DC
■ Power polarity reverse protect
■ Overload current re-settable fuse present
■ Surge (EFT) protection 3000 V DC for power line
■ 4000 V DC Ethernet ESD protection
■ Flexible mounting: DIN-rail and panel mounting
■ Operating Temperatures • from –10 °C up to +60 °C (standard model)

TES-401-X: Part No. 1987033-1
TES-401-XE: Part No. 1987033-2
TES-500-X: Part No. 1987031-1
TES-500-XE: Part No. 1987031-2

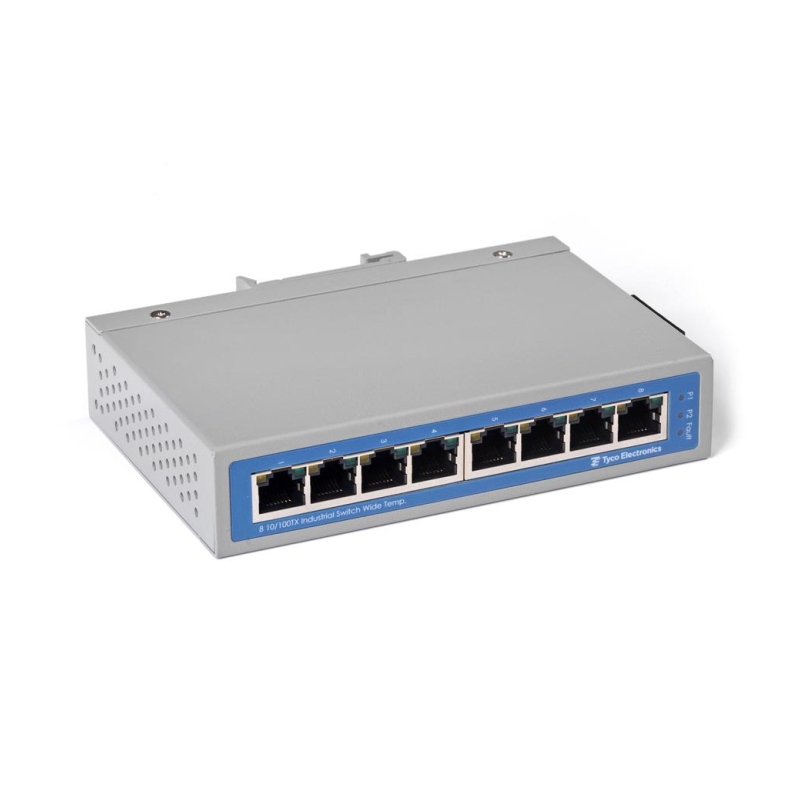

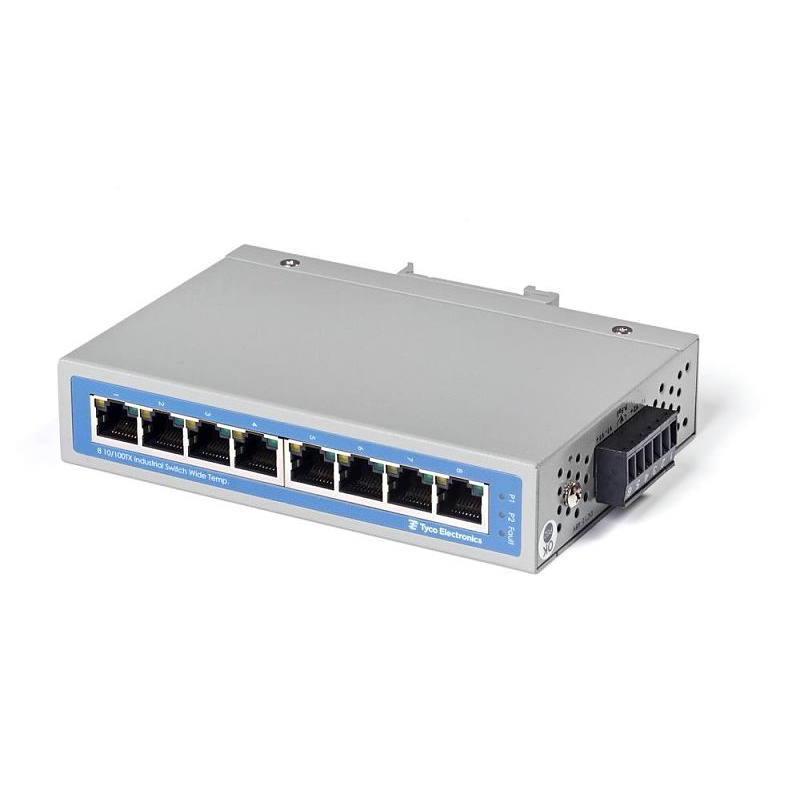

TES-800-X: Part No. 1987032-1
TES-800-XE: Part No. 1987032-2
